The DuraUni Vaculift is a highly compactable, single layer, neoprene coated glass fibre duct with a copper coated steel spiral and acrylic overlayer. Please click below to see the relevant data sheet.
Product Description

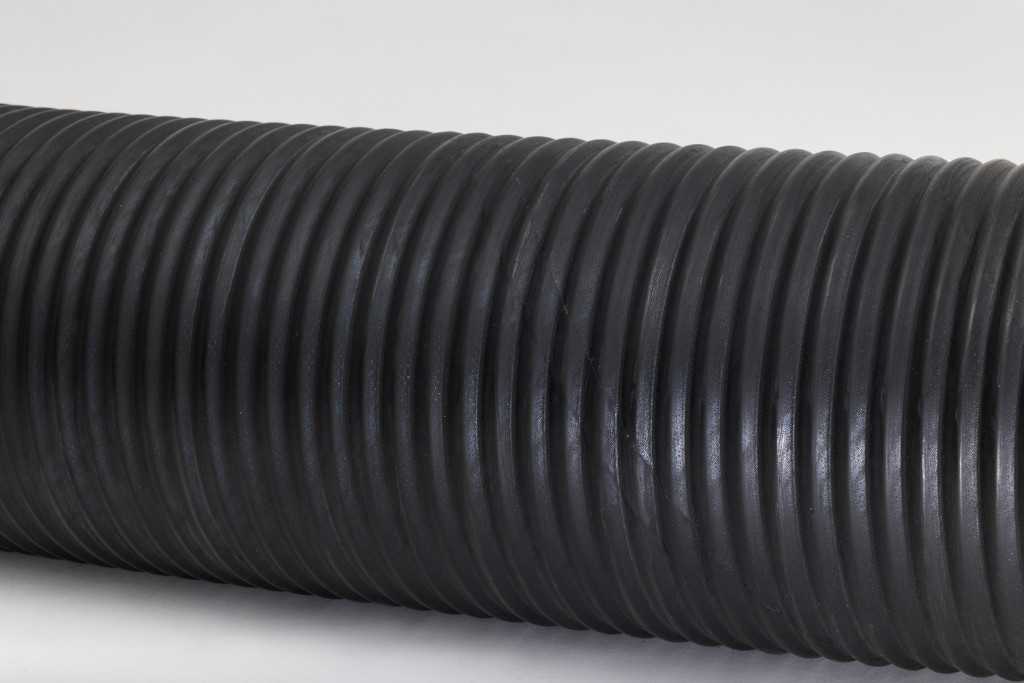

The DuraUni Vaculift is a single-ply, neoprene polyester fabric duct, structured with a copper coated steel wire. Due to the single ply construction, the internal spiral is visible on the inside of the duct. The duct is finished using a single bound black glass fibre cord and acrylic tape overlayer. The duct is extremely flexible and compactable, permitting a 1,000mm duct to be compacted to a mere 350mm. The product is CE certified and is particularly suitable for vacuum lifting purposes.
Technical Specifications
| Product Category | DuraUni Vaculift |
| Application Medium | Predominantly used for vacuum suction & lifting. |
| Pressure Res. Min/Max (mmWS/mmWG & bar) | |
| Duct Inside Diameter Min/Max (mm) | 10 mm to 407 mm |
| Duct Length Min/Max (mm) | 100 mm to 30,000 mm |
| Temperature Tolerance Min/Max (°C) | -35°C to +135°C |
| Crush and Kink Proof | No |
| Interior Lining Structure | Visible internal spiral, ribbed structure |
| Standard Cuff Type | Straight Cut |
| Static Properties | Antistatic, if spiral earthed. 10n6 |
| Magnetic Properties | Not Applicable |
| Flame Retardant | No |
Comparison Chart
| VacuLift (this product) | UNI M2 | M2 i Standard | M2 S Standard | |
| Inner Material | No Inner Material | Neoprene Coat. Glass | Neoprene Coat. Glass | Pure Neoprene Layer |
| Outer Material | Neoprene Coated Polyester | Neoprene Coat. Glass | Neoprene Coat. Glass | Neoprene Coat. Glass |
| Insulation Material | No Insulation Material | No Insulation Material | Melamine Foam Basotec 6mm | No Insulation Material |
| Overlayer Material | Acrylic Tape | No Overlayer Material | Neoprene Glass Fabric | No Overlayer Material |
| Spiral Material | Copper Coated Steel Wire | Copper Coated Steel Wire | Copper Coated Steel Wire | |
| Cord Material | Black Glass Fibre Cord | Twin Glass Cord | Twin Glass Cord | Twin Glass Cord |
| Applicable Norms | CE | CE, DIN4102B1, NFP92501-M1 | CE | CE |
Optional Product Customisations
| Overlayer Material | Various Colours Available |
| Outer Material | Optionally available with Neoprene Coated Glass Fibre Fabric. |
| Cuffs | Optional EPDM Rubber Cuffs 80mm for added edge stability. |
* All technical parameters can vary due to raw material, ambient temperature and humidity and are subject to variation
